主な仕様
-
Dimensions
Height: 334mm (13.2 in) including tweeter
Width: 846mm (33.3 in) cabinet only
Depth: 363mm (14.3in) including grille and terminals - Net weight 33.4kg (73.5lbs)
-
Technical features
Diamond dome tweeter
Solid body Tweeter-on-Top
Continuum™ cone FST midrange
Anti-Resonance plug
Biomimetic Suspension
Matrix™
Aerofoil™ base cones
Flowport™ - Description 3-way vented-box system
-
Drive units
1x ø25mm (1in) Diamond dome high-frequency
1x ø150mm (6in) Continuum cone FST midrange
2x ø200mm (8in) Aerofoil™ bass - Frequency range -6dB 20Hz to 35kHz
- Frequency response 28Hz to 28kHz (+/-3dB)
- Sensitivity 90dB
-
Harmonic distortion
2nd and 3rd harmonics (90dB, 1m on axis)
<1% 90Hz – 20kHz
<0.3% 100Hz – 8kHz
- Nominal impedance 8Ω (minimum 3.0Ω)
- Recommended amplifier power 50W – 1000W into 8Ω on unclipped programme
- Max recommended cable impedance 0.1Ω
-
Cabinet finishes
Stealth Black
Warm White
Dark Walnut -

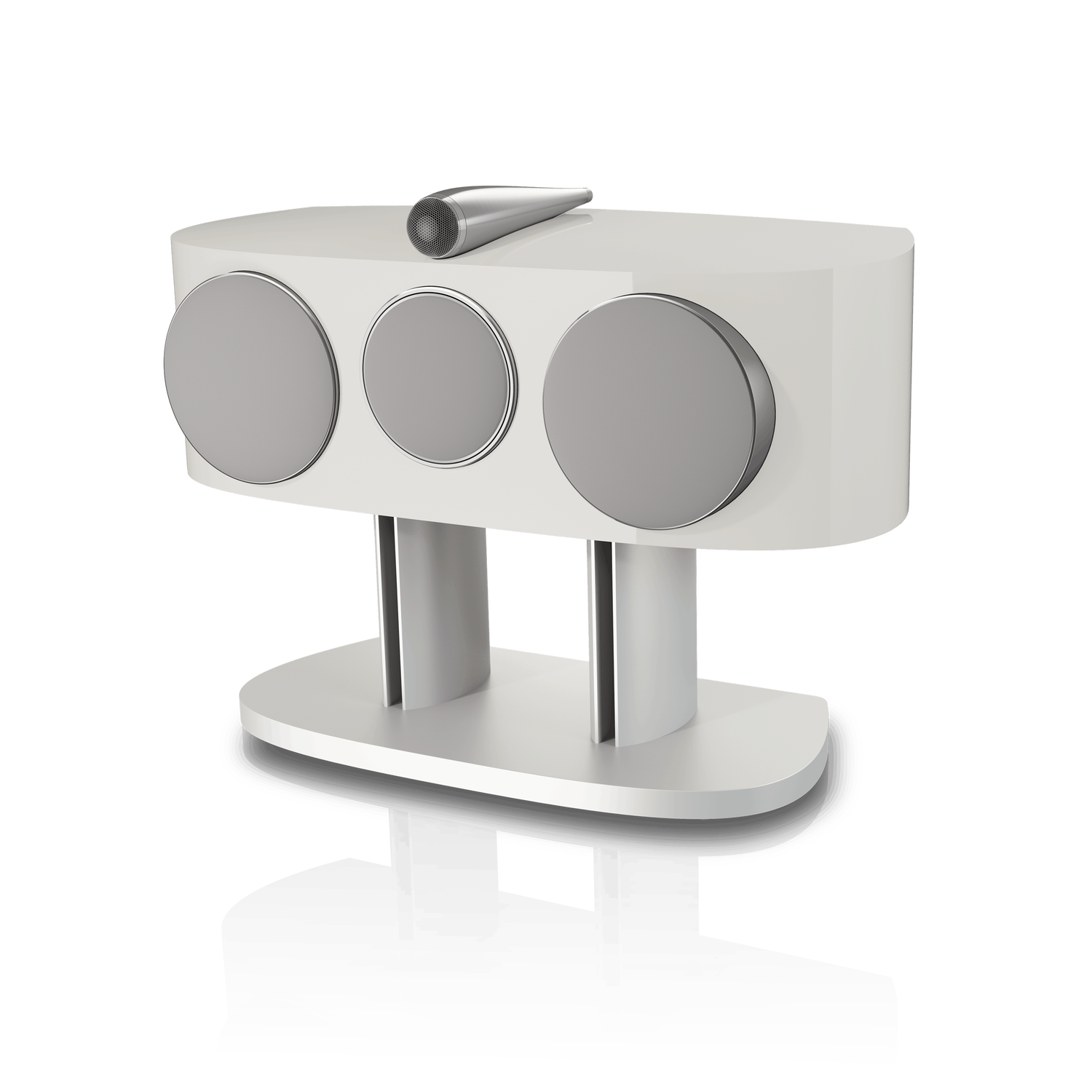

Grille finishes
Black (Stealth Black and Dark Walnut)
Grey (Warm White) - Accessories FS-HTM Black, Stand: Titanium
