Power Amplifier
- Number of Powered Channels 11
- Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive) -
- Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive) 140 W
- Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) 175 W
- Power Output (6 ohm, 1 kHz, 10% 1ch Drive) 250 W
- 70% Guarantee Yes
- Discrete Power Amplifier Yes
- Amplifier Topology Class A/B
- Current Feedback Topology yes
- Bi-Amp Drive assignable
Multichannel Surround Technologies
- DTS DTS HD Master, DTS:X, DTS:X Pro, DTS Neural:X, DTS Virtual:X
- Dolby Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music, Dolby Surround
- Other
- Max Number of Processing (Preamp) Channels 13.4
- IMAX Enhanced Yes
- Auro 3D Yes
- Audyssey DSX Yes
- Multichannel Stereo Yes

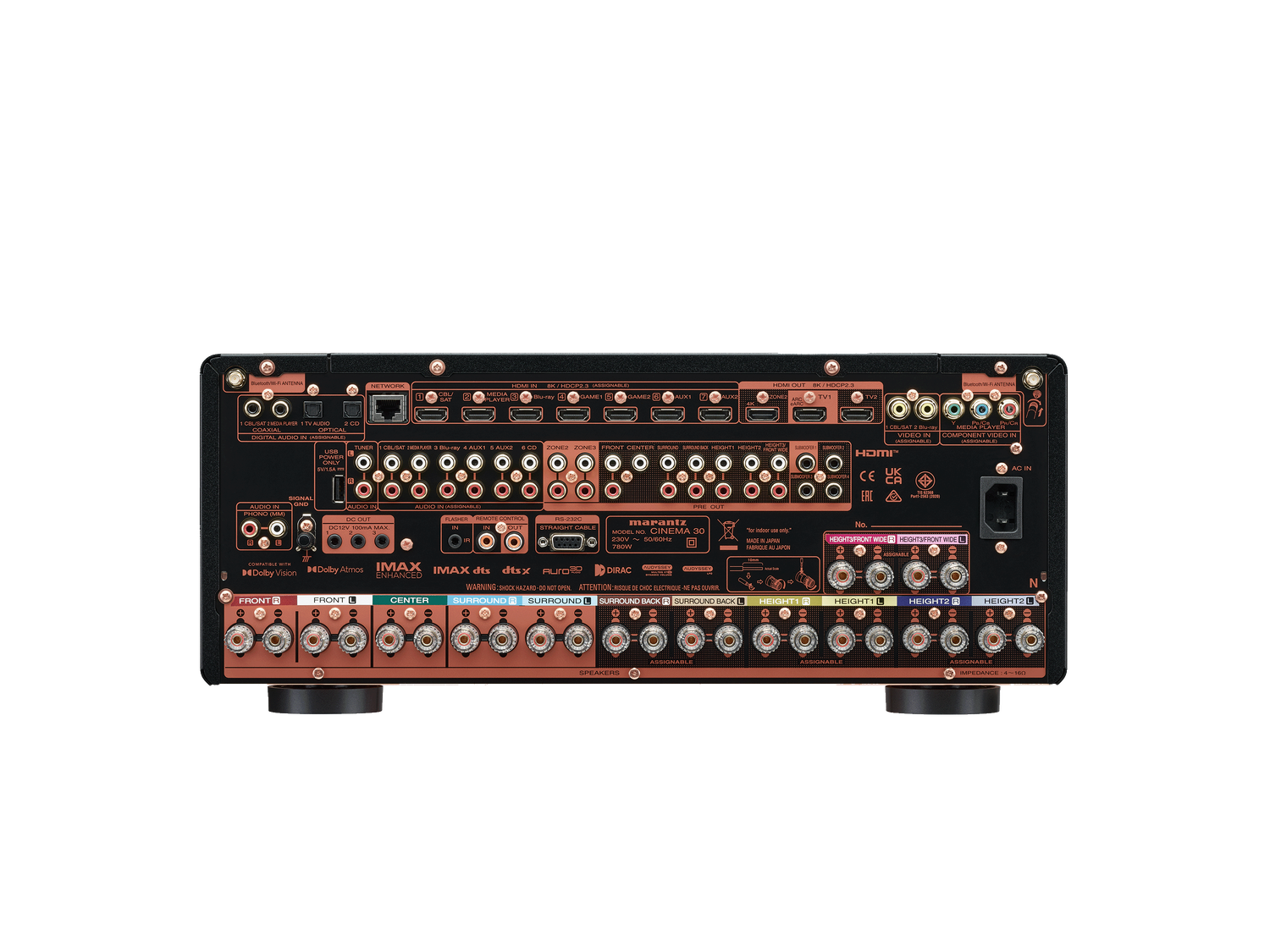

Inputs Outputs
- Composite In / Out 2 / 0
- Component In / Out 1 / 0
- HDMI In / Out 7 / 3
- Multi-Room Video Out via HDMI 0 / 0
- Analog In / Fixed Level Out 3 in / 0 out
- Phono (MM) In Yes
- Digital In: Optical / Coaxial 2 / 2
- Multi-Room Out: analog / digital 2 / 0
- Multichannel Preamp Out 7.2
- Subwoofer Out 4 (independent)
- 7.1 multichannel input No
- Number of Speaker Terminals 13
- Speaker A / B assignable
- Multi-Room Speaker Terminal assignable
- Front Inputs USB-A
- USB Audio Yes / No / No
- FM Tuner with RDS Yes
- DAB+ Tuner No
- Multi-Room Video Out: Video / HDMI 7/3
- analog In/out 6 / 0
- Multichannel Pre Out Yes (13.4)
- Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB No / No / No / No / Yes
HDMI
- Total HDMI Inputs / No. Support 8K 6 / 3
- HDCP2.3 support Yes
- HDMI Outputs: Main / Zone 2 / 1
- Analog to HDMI Video Conversion No
- HDMI Upscaling 1080P/4K to 8K
- Max resolution @ framerate
- Audio Return Channel ARC, eARC
- Video Dynamic Range HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR
- ALLM (Auto Low Latency Mode) Pass-through for gaming Yes
- Variable Refresh Rate / Quick Frame Transport Yes / Yes / No
- HDMI Pass-Through in Standby Mode Yes
- CEC Yes
- DSD Audio over HDMI No
- Auto LipSync Yes
- HDMI Inputs: Back / Front 7 / -
- Video Conversion Analog -> HDMI Yes
- HDMI to HDMI Scaling 1080P/4K to 8K
- HDMI 2.1: 8K/60Hz AB / 4K/120Hz AB Yes / Yes
- 8K/60Hz AB / 4K/120Hz AB Pass-through In/Out 7 / 2 (up to 40Gbps)
- HDMI 2.0: 3D / 4K / CEC / ARC Yes / Yes / Yes / Yes
- HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR Yes / Yes / Yes / Yes / Yes
- Variable Refresh Rate / Quick Flame Transport / Quick Media Switching Yes / Yes / No
- 8K signal pass-through / scaling / GUI overlay o / o / o
- 4K Signal Pass-Through / Scaling / GUI Overlay o / o / o
- DSD Audio Capability Yes
Performance Technologies
- Copper Plated Chassis Yes
- Toroidal Power Supply Transformer Yes
- Hyper Dynamic Amplifier Modules (HDAM) (List version) Yes
- Pure Direct Mode Yes
- Gold Plated RCA Terminals Yes
- Clock Jitter Reducer Yes
Acoustic Room Correction
- Audyssey MultEQ XT32
- Audyssey Dynamic EQ / Dynamic Volume Yes / Yes
- Audyssey LFC Yes
- Dirac Live Support Yes
- Variable Cross Over Yes
- Optimized Bass Redirection Yes
- Bass Sync Yes
- Dirac Live Upgradability Yes
Music File Support
- Lossy Formats MP3 / WMA / AAC
- Lossless formats FLAC HD 192/24 / WAV 192/24 / ALAC 192/31
- DSD Audio 2.8 MHz / 5.6 MHz
- Gapless Playback FLAC, WAV ,ALAC ,DSD
- Compressed Audio Enhancer: MDAX2 Yes
- Network Audio Sharing Yes
Streaming Services
- HEOS Multi-room and Streaming Yes
- AirPlay Audio Streaming AirPlay2
- Internet Radio TuneIn
- Spotify* Spotify Connect
- Pandora No
- SiriusXM Yes
-
Other Streaming Services *
Amazon Music HD/
Amazon Music / TIDAL / Deezer / Napster / Soundcloud / Mood Mix - Roon tested Yes
Network Connectivity
- Ethernet Ports Yes
- Wi-Fi (include version / band) Yes
- Bluetooth (Include version) Yes
- Bluetooth Re-transmit for Bluetooth headphones Yes
Smart Home Integration and Control
- Voice Assistant Compatibility Alexa / Google Voice Assistant / Apple HomePod
- App for Smart Phones & Tablets (iOS & Android) Marantz AVR App
- HEOS Multi-Room Integrated Yes
- HEOS Link Compatibility: IR/ IP Yes /Yes
- Multi-Room zones 2
- Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog 2 Ch / 2 Ch / Yes / Yes
- Zone Audio Output: Speaker / Preout Yes / Yes
- Zone HDMI Output from HDMI Source Yes
- Control Connectivity IP Control / RS232 Control / Web Control / App Control
- IR Flasher In Yes
- Marantz Remote Bus Yes
- DC Trigger Output 3
- HDMI Diagnostics Yes
Others
- Front Display 2 line FLD + port hole OLED
- Primary Display Size (diagonal in/mm)
- Secondary Display Size (diagonal in/mm)
- GUI Languages 3
- Setup Assistant Yes
- Smart Select on Remote Yes
- Firmware Update by Network / USB Yes / Yes
- ECO Mode Yes
- Auto Power off Yes
- Sleep Timer Yes
- GUI Overlay on HDMI
- CEC Yes
- Auto Speaker Setup by Microphone Audyssey MultEQ XT32Dirac Live (upgrade)
- Graphic User Interface - GUI Modern HD GUIModern HD GUI
- Smart Select Yes
General
- Available Colors Black/Silver-Gold
- Metal Front Panel Yes
- System Remote Control RC-051SR
- Power Consumption in W 780
- Power Consumption No-Sound (ECO on/off) in W 65 W / 110 W
- Standby Consumption in W 0.2
- CEC Standby Consumption in W 0.5
- Network Standby Consumption in W Less than 2.0
-
Maximum Dimensions
Antenna:Horizontal:(W x D x H) in mm
Antenna:Vertical :(W x D x H) in mm
W/o Antenna:(W x D x H) in mm 442 x 457 x 189
442 x 457 x 257
442 x 447 x 189 - Weight in kg 19.4
- What's in the box Main unit, remote control, batteries, AM/FM antennas, wire labels, quick start guide, Audyssey microphone, cardboard microphone stand, 2 External Detachable Antennas, AC cord
- Weight in lbs. 42.8
-
Maximum Dimensions
Antenna:Horizontal:(W x D x H) in mm
Antenna:Vertical :(W x D x H) in mm
W/o Antenna:(W x D x H) in mm 17.4 x 18.0 x 7.5
(17.4 x 18.0 x 10.2)
【17.4 x 17.6 x 7.5】 - Pre-Programmed / Learnable / LCD Display Yes / Yes / Yes
