Eigenschappen
- AirPlay 2 Yes
- Amazon Prime Music* / Pandora* Yes / Yes
- Asynchronous mode rear USB-B Yes
- Bit-perfect transmission Yes
- CD Compatibility: CD / CD-R/RW / SA-CD / WMA / MP3 / AAC Yes / Yes / Yes / Yes / Yes / No
- CD-Text / SA-CD Text / ID3 Tag / WMA Meta Tag / AAC Meta data No / Yes / Yes / Yes / No
- Copper Plated Chassis No
- Customised Components Yes
- DAC operation mode: USB B type / Coax / Optical Yes / Yes / Yes
- Data Disc Compatibility: DSD / WAV / ALAC Yes / Yes / Yes
- Digital out off / Audio EX Mode Yes / No
- Extra metal plate for chassis strengthing Yes (1.5mm)
- HDAM version HDAM+HDAM SA3
- Headphone: Standard / Buffer / Current feedback No / No / Yes (HDAM SA2)
- HEOS Multiroom and Streaming Yes
- High Grade Audio Components Yes
- Internet radio tunein
- Jitter reducer Yes
- Network Audio Streaming Yes
- Power Transformer: Toroidal / El Yes / No
- Roon Tested Yes
- Signal isolator for DAC Mode operation Yes
- Spotify Connect* / Tidal* / Deezer* / others * Yes / Yes / Yes / Yes
- Symmetric circuit layout Yes
- USB input for memory stick Yes
- USB-B DSD Audio Streaming (DoP): DSD2.8 / DSD5.6 / DSD11.2 Yes / Yes / Yes
- Voice Control - Google Assist / Apple Siri Yes / Yes
- Voice Control - Microphone built-in No
- Voice Control - Works with Amazon Alexa Yes
Algemeen
- Auto Power off Yes
- Available Colors: Gold / Silver / Black / Silver-Gold No / No / Yes / Yes
- Carton Maximum Dimensions (W x D x H) in mm 534 x 522 x 255
- Carton Weight (inc. product) in kg 16.2
- Detachable Power Cable Yes
- Maximum Dimensions (W x D x H) in mm 443 x 424 x 130
- Metal Front Panel Yes
- Power Consumption in W 48
- Remote Control RC002PMND
- Standby Consumption in W 0.4
- Weight in kg 13.5

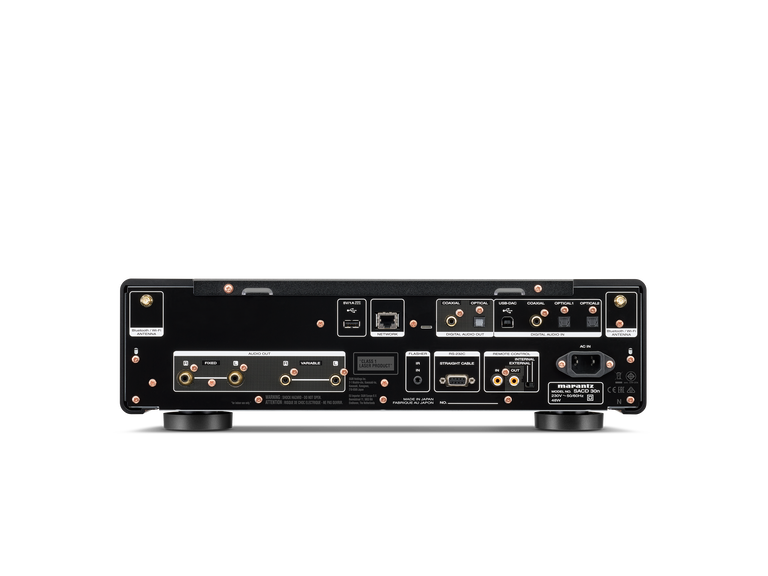

Ingangen en uitgangen
- Analogue Out (Cinch) 1
- Balanced Out No
- D-Bus Yes
- Digital Coaxial In / Out 2 / 1
- Digital Optical In / Out 1 / 1
- Ethernet port Yes
- Flasher Input Yes
- Gold Plated Cinch Yes
- Headphone Out Yes
- Headphone Volume Control Yes
- IP control Yes
- RS232 Yes
- Sample Rate digital In 192 kHz / 24-bit
- USB Audio (front) Yes (rear)
- USB type B input for PC (rear) Sample Rate USB type B In Yes up to DSD11.2
- Variable Out (Cinch) 1
Netwerk
- App control AMP/CD via Network Player Yes
- Bluetooth on / off mode Yes
- DSD Audio Streaming up to DSD5.6
- Gapless Playback Yes (FLAC, WAV, DSD)
- Lossless formats: DSD / FLAC HD 192/24 / ALAC 96/24 / WAV 192/24 Yes / Yes / Yes / Yes
- Lossy formats MP3 / WMA / AAC Yes / Yes / Yes
- Remote APP: iDevice / Android Yes / Yes
- Wi-Fi on / off mode Yes
- Wi-Fi / Wired LAN 2.4GHz, 5GHz / Yes
Overige
- Display: Dimmer / Off Yes / Yes
- Marantz Musical Mastering Yes
- Marantz Musical Mastering Conversion Yes
- Marantz Musical Mastering Stream Yes
- Selectable filter: CD / SA-CD / DAC-Mode Yes/ No / Yes(PCM only)
- Separated rectifier circuit for analogue and digital circuitry Yes
Weergave
- Program Play (CD / SA-CD) 25 / No
- Random Play Yes
- Repeat Yes
Specificaties
- Channel separation No
- Channel Separation (SA) No
- D/A Conversion MMM
- DAC IC MMM
- Digital Filter MMM
- Dynamic Range 98 dB
- Dynamic Range (SA) 109dB
- Frequency response 2 Hz - 20 kHz
- Frequency Response (Cust.) 2 Hz - 20 kHz
- Headphone amp HDAM SA3
- Low Pass Filter stage HDAM
- Mechanism SACDMNo3L
- Noise Shaper MMM
- Output Buffer HDAM SA3
- Signal to Noise Ratio 104dB
- Signal to Noise Ratio (SA) 112dB
- Total Harmonic Distortion 0,000015
- Total Harmonic Distortion (SA) 0.0008%
