General
- Unit (W × H × D mm) 440 × 192 × 473
- Cabinet Size 440 × 192 × 422
- Net weight 33.7kg
- Packaging Dimensions (W × H × D mm) 600 × 379 × 540
- Packaging gross weight 39.0kg
- Carton Color 1 Color (Material color: Brown Printing: Black)

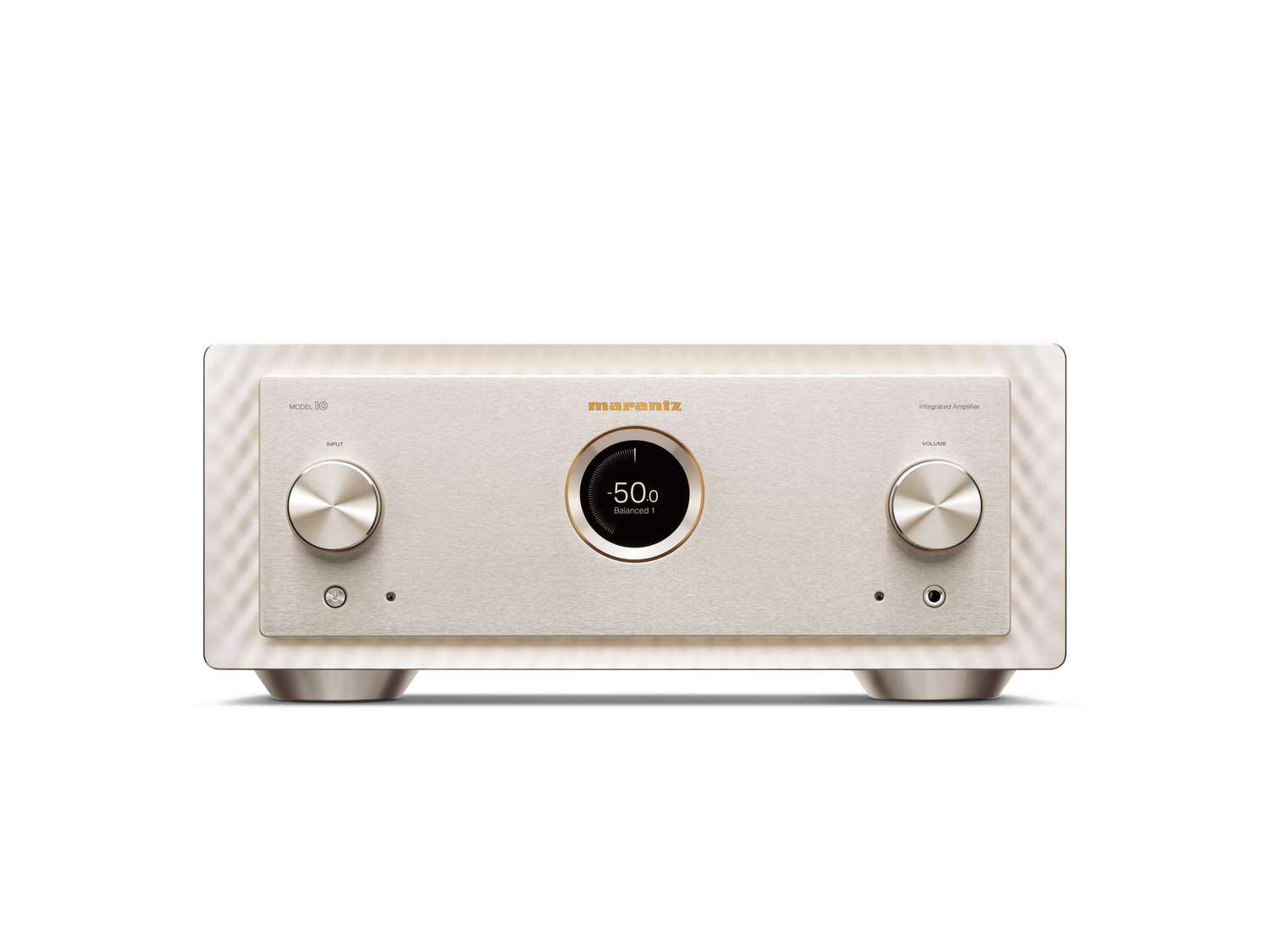

- Panel Color Black / Marantz Champagne
- Front (Center) Panel Anodized machined aluminum
- Back-shell AAnodized machined aluminum
- Front panel illumination Yes (All sides, Dimmer)
- Side cover Aluminum (Thickness: Max 15.8mm)
- Top cover Aluminum (Thickness: 6mm)
- Top cover (Centor) ventilation hole material Stainless mesh
- Interior ilumination Yes, dimmable
- Rear Panel Copper Plated
- Chassis Material Copper Plated
- Bottom Layer / Bottom plate Triple layer Copper plated
- Front panel illumination Yes (All sides, Dimmer)
- Volume Knob Solid aluminum (Bearing construction)
- Input Selector Solid aluminum (Bearing construction)
- Foot Solid Alminum Copper plated (H: 18.5mm)
- Heatsink for Power Amplifier Extruded Aluminum
Audio
-
Rated Output Power
250W + 250W
(8ohm,20Hz-20kHz,THD 0.05 %)
500W + 500W
(4ohm,20Hz-20kHz,THD 0.05 %) - Speaker Impedance 4~16ohm
-
Frequency Response
5Hz~60kHz +0dB/-3dB
20Hz~20kHz +0dB/-0.3dB -
Total Harmonic distortion
0.005%
(125W, 8ohm, 20-20kHz)
(CCIF IMD, DFD IMD) - Damping Factor 500 (8ohm, 20Hz-20kHz)
-
Input Sensitivity: Phono input
MM: 3.6 mV / 36 kohm
MC (Low): 400 μV / 33 ohm
MC (Mid): 400 μV / 100 ohm
MC (High): 400 μV / 390 ohm - RIAA Deviation 20 Hz - 20 kHz ±0.5 dB (MM/MC)
-
Phono Maximum Input
MM : 80mV
MC : 8mV -
Input Sensitivity: CD/LINE/RECORDER
350 mV/41kohm (Unbalanced)
700 mV/36kohm -
Input Sensitivity: Power Amp input
Unbalanced: 1.58V / 41kohm (Gain : 29dB)
Balanced: 3.16V / 15kohm (Gain : 24dB) -
SN Ratio
PHONO (MM): 88dB
PHONO (MC): 76dB
CD: 122dB
Balanced: 122dB - Headphone Output Level 130mW / 32 ohms
-
Tone Control
BASS : 50Hz ±10dB
TREBLE : 15kHz ±10dB -
Power Consumption
270W
0.1W (at Standby)
Audio/ Video
-
Phono Input
Yes (MM / MC)
Marantz Musical Premium Phono EQ w/ Selectable MC impedance (3 position)
PHONO (MC Low): 400 μV / 33Ω
PHONO (MC Mid): 400 μV / 100Ω
PHONO (MC High): 400 μV / 390Ω
PHONO (MM): 3.6 mV / 39kΩ -

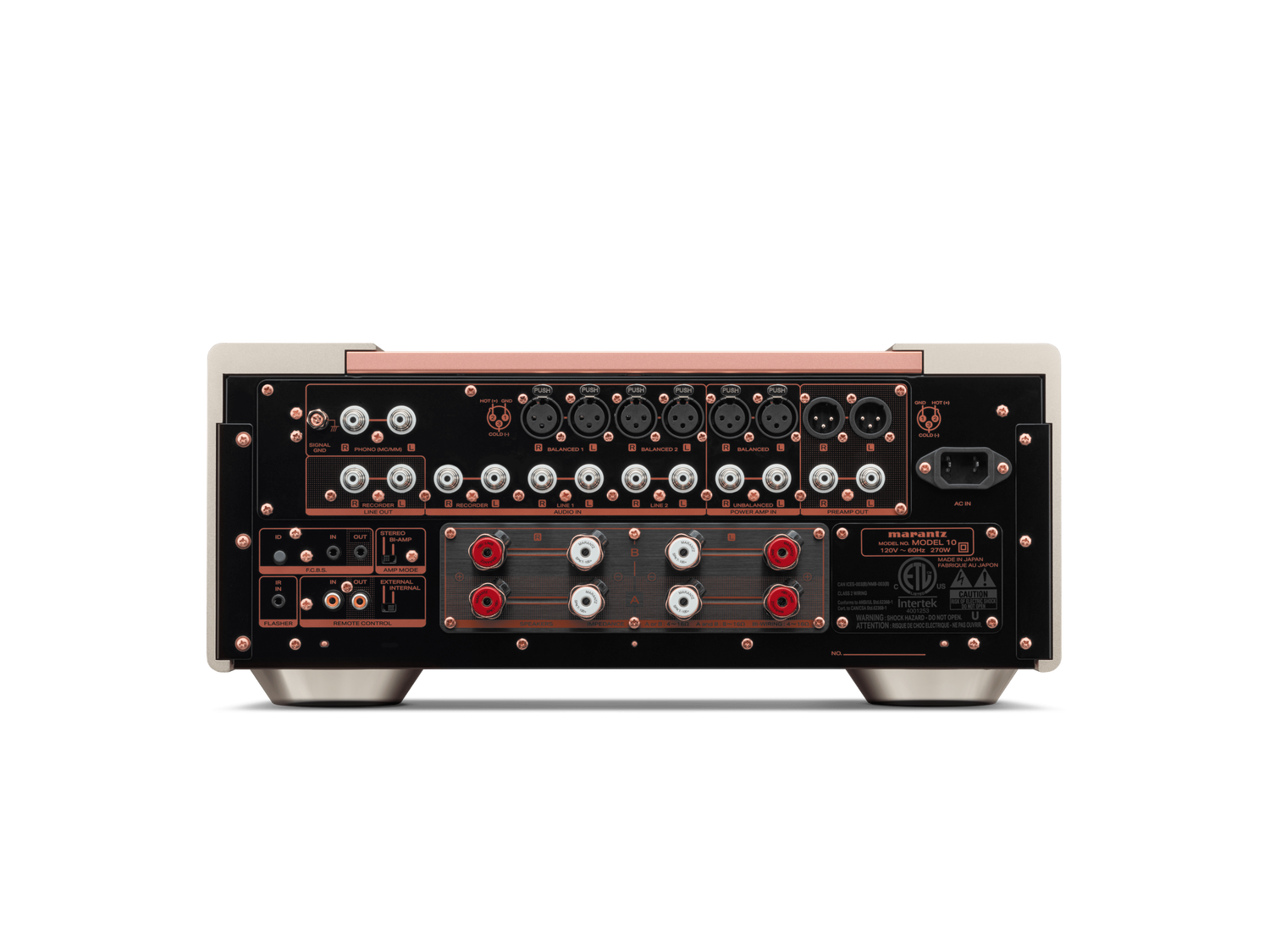

Analog Input (include Phono) / REC Out (RCA)
4 /1
(LINE1, LINE2, PHONO: Thick nickel plated independent terminals)
(RECORDER: Thick nickel plated independent terminals) - Balanced XLR input 2
- Power Amp Direct Yes [RCA (Thick nickel plated independent terminals) / XLR]
- Pre out Yes [RCA (Thick nickel plated independent terminals) / XLR]
- 2 sets of Speaker Output Yes (Bi-wiring)
-
Speaker Terminal
Marantz Original SPKT-100+
2 (High quality and high-purity copper plated) -
Headphone Output
1
(Turns off the speaker automatically when headphone is inserted)
Control/ Other
- Remote Control Bus Terminal Yes (RC-5 In / Out)
- Remote Internal / External Switch Yes
- Flasher Input Yes
- AC Inlet Yes
-
Other
F.C.B.S.
(Floating Control Bus System) - Remote Controller 10 series Universal Remote control
-
Unit control (Button)
Tact Switch : 1
POWER -
Unit control (Knob)
2
VOLUME, INPUT SELECTOR -
LED
POWER: 1 White
Protection: 1 Orange
Illumination (Edge): White
Interior: White - Front Panel Display New HD TFT Color Display
- Dimmer for Front Display 20 steps
- Level meter Yes (HD Display)
-
Volume Display
-infinity/-99.5dB - 0dB / 0.5 step (default)
0-100 / 0.5 step
switchable - Last Function Memory Yes
- Auto Standby Mode Yes
- Remote Controller RC004PMND
- Battery Yes (AAA ×2)
-
Power Cord
Yes
(ALL region / Audio Grade / OFC) - Other CoA card
