805 D5 - Tower speaker

805 D5

60 years in the making.

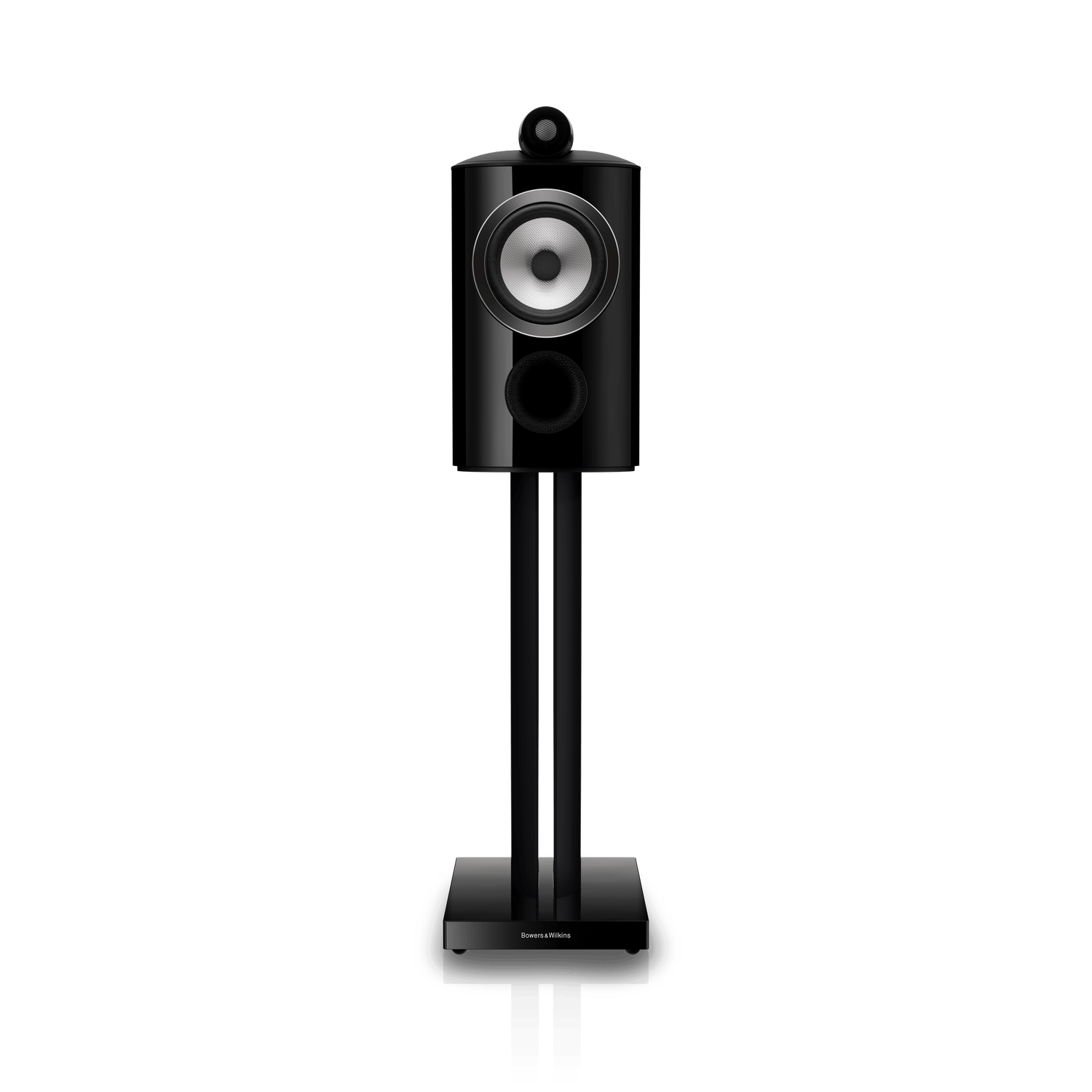

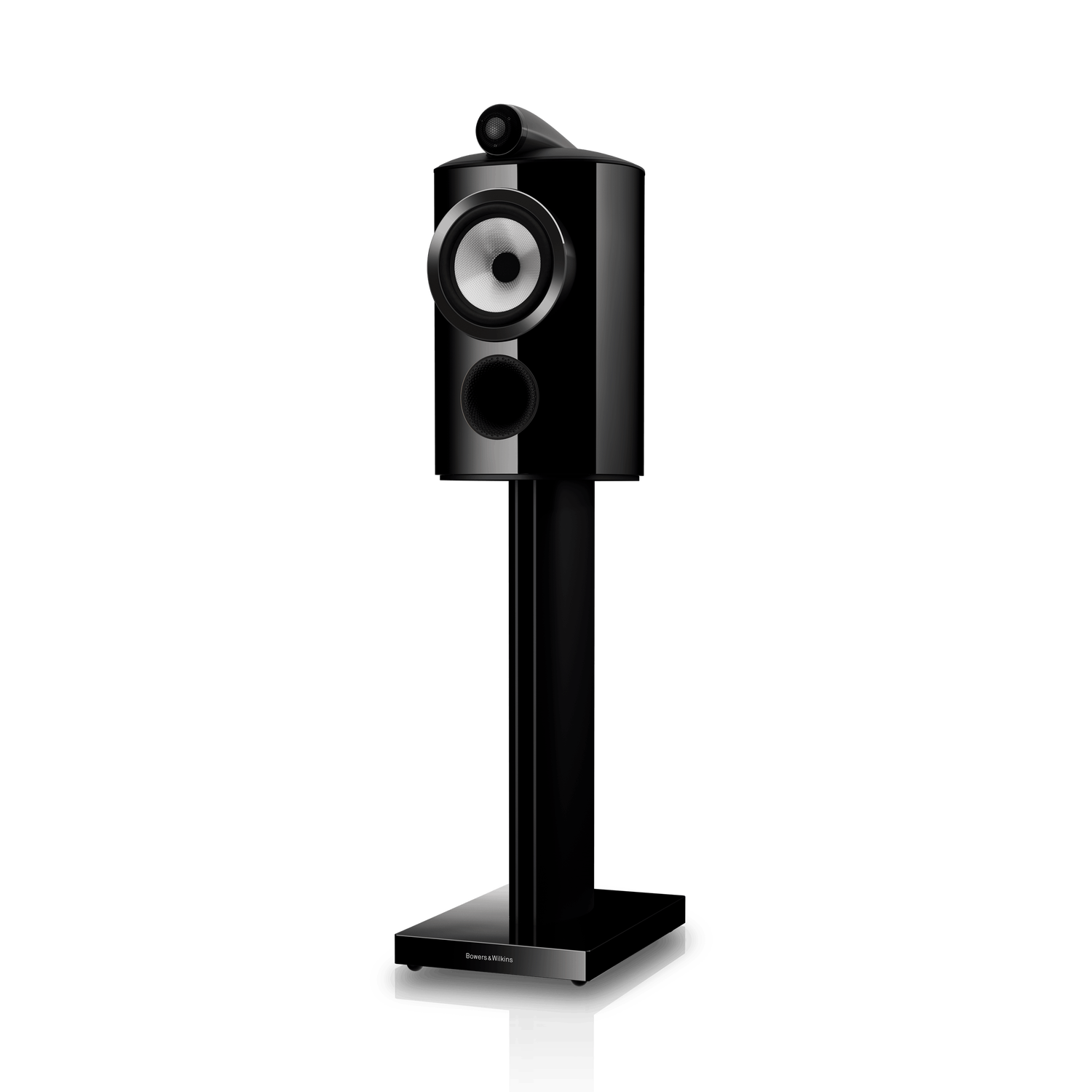

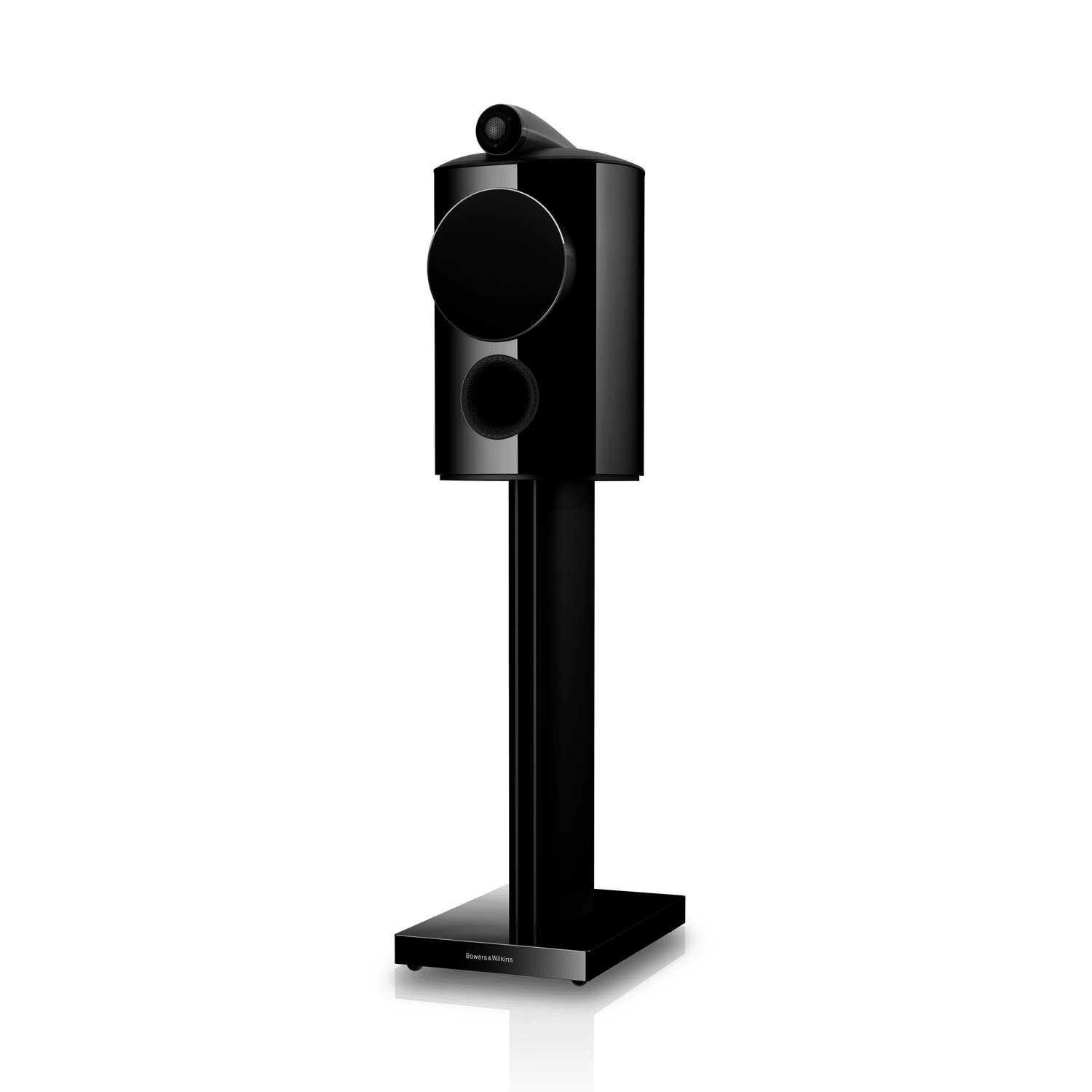

Stealth Black 805 D5 front
Stealth Black 805 D5 front
Stealth Black 805 D5 front

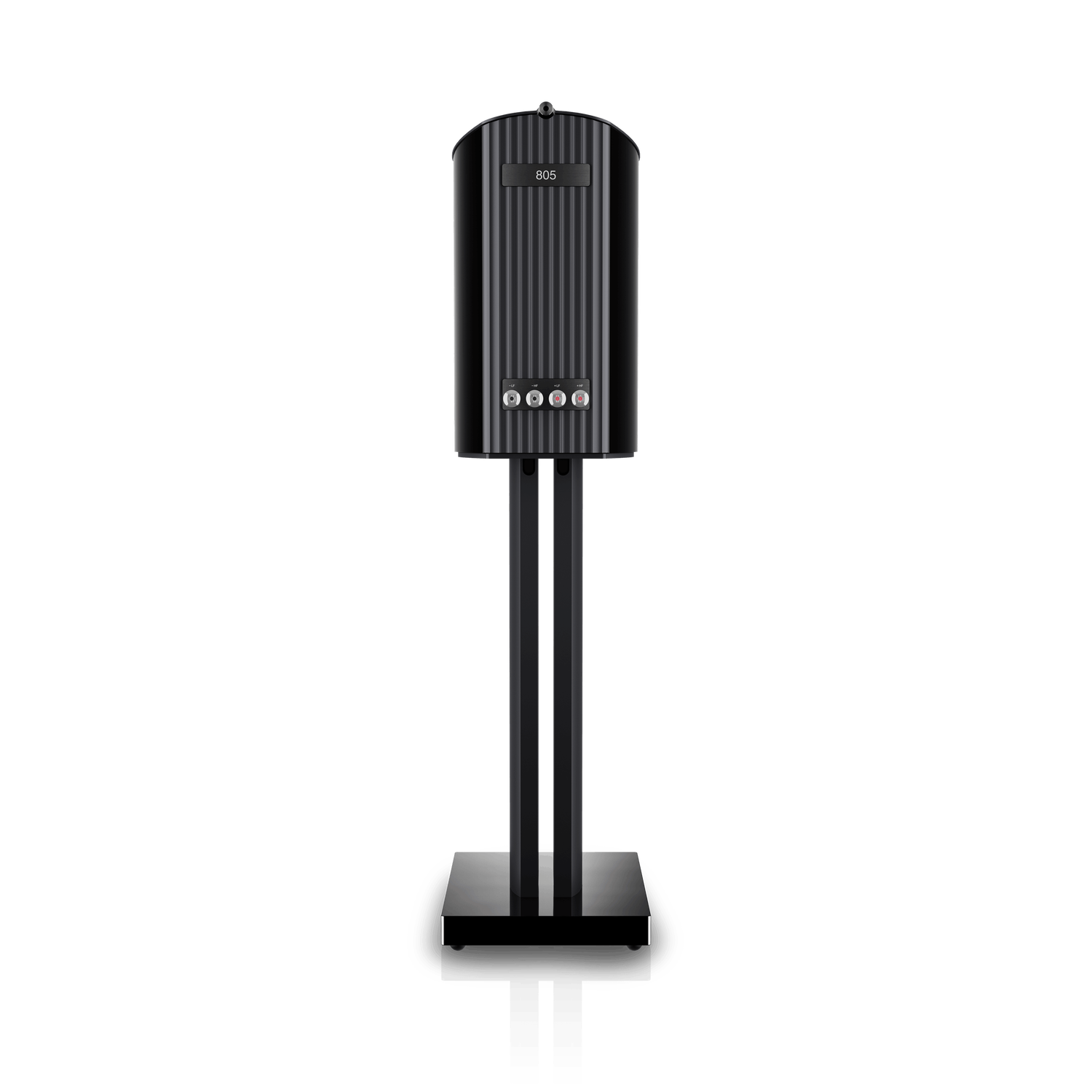

Stealth Black 805 D5 back

805 D5

Reference stand-mount loudspeaker

The 805 D5 stand-mount loudspeaker is the most compact model in the 800 Series Diamond range. While it’s best suited for smaller listening spaces, its large-scale performance greatly exceeds its modest stature.

Equipped with our Diamond dome tweeter, Solid Body Tweeter-on-Top and Continuum mid-bass cone housed in a reverse wrap cabinet, 805 D5 sounds and performs best when securely atop its bespoke speaker stands. Available in Stealth Black, Warm White, Light Walnut, and Dark Walnut, with matching Leather by Connolly trim, the 805 D5 is proof positive that small can still be beautiful.
* Stand(s) not included.

Choose a finish
Stealth Black Light Walnut Warm White Dark Walnut
Stealth Black
Find a Retailer 805 D5

805 D5

805 D5

Estimated to ship on {0}
805 D5 - Tower speaker
Diamond dome tweeter speaker on 805 D5

Ultimate drive unit technology

Pairing our most advanced and innovative drive unit technology, the 805 D5 delivers our purest sound ever. The Diamond dome tweeter pushes break-up frequency to 70kHz, delivering exceptional clarity, precision and openness, and the Continuum™ cone delivers voices and instruments with lifelike detail.

Optimised for pure performance

Every model in the new 800 Series Diamond range benefits from enhanced technology. An upgraded Matrix™ design reduces resonance and creates a more believable soundstage, while aluminium Space Frame Bracing and an all-new aluminium top section within the cabinet help deliver an even more spacious and immersive sound.

2 Light Walnut 805 D5 speakers with blue background
White 805 D5 lifestyle

Crafted to be better by design

The 800 Series Diamond looks this way for a reason. Its shape is dictated by the science of sound. Our cabinets are formed from a single continuous curve, locked in place by a solid aluminium spine, so cabinet reflections are reduced. Complemented by the Tweeter-on-Top, musical performance is always as precise as possible.

Stands for 800 Series

FS-805 D5
FS-805 D5
Reference 805 D5 speaker stand
FS-HTM D5
FS-HTM D5
Reference HTM81 D5 or HTM82 D5 centre-speaker stand
805 D5
Details & Specifications
  • Dimensions Height: 439mm (17.3 in) including tweeter
    Width: 241mm (9.5 in) cabinet only, 447
    Depth: 322mm (12.7in) cabinet only, 363mm (14.3in) including grille and terminals
  • Net weight 16.4kg (36.0lbs)
  • Technical features Diamond dome tweeter
    Solid body Tweeter-on-Top
    Continuum™ cone FST midrange
    Anti-Resonance plug
    Matrix™
    Flowport™
  • Description 2-way vented-box system
  • Drive units 1x ø25mm (1in) Diamond dome high-frequency
    1x ø165mm (6.5in) Continuum cone bass/midrange
  • Frequency range -6dB 34Hz to 35kHz
  • Frequency response 42Hz to 28kHz (+/-3dB)
  • Sensitivity 88dB
  • Harmonic distortion 2nd and 3rd harmonics (90dB, 1m on axis)
    <1 % 90Hz - 20kHz
    <0.3% 100Hz – 8kHz
  • Nominal impedance 8Ω (minimum 4.6Ω)
  • Recommended amplifier power 50W – 120W into 8Ω on unclipped programme
  • Max recommended cable impedance 0.1Ω
  • Cabinet finishes Stealth Black
    Warm White
    Dark Walnut
    Light Walnut
  • Grille finishes Black (Stealth Black and Dark Walnut)
    Grey (Warm White and Light Walnut)
  • Accessories FS-805 Black, Stand: Titanium
