Output Power
-
Rated Output Power
70W + 70W (8ohm)
100W + 100W (4ohm)
Features
- Power Amplifier Circuit HDAM-SA3
- Power Transformer Double Shielded Toroidal
- Volume Electric
- Bass / Treble / Mid / Balance Control yes / yes / - / yes
- Source Direct yes
- Frequency Response 5Hz - 50kHz
- Total Harmonic Distortion 0.02% (20Hz - 20kHz, 8Ω)
- Dumping Factor 100
- Input Sensitivity: Phono input 2 mV / 47 kohm
- Input Sensitivity: CD/Line/Recorder 220 mV / 20 kohm
- Input Sensitivity: Power Amplifier input 1.6 V / 15 kohm
- SN Ratio PHONO (MM): 87dBCD: 106dB

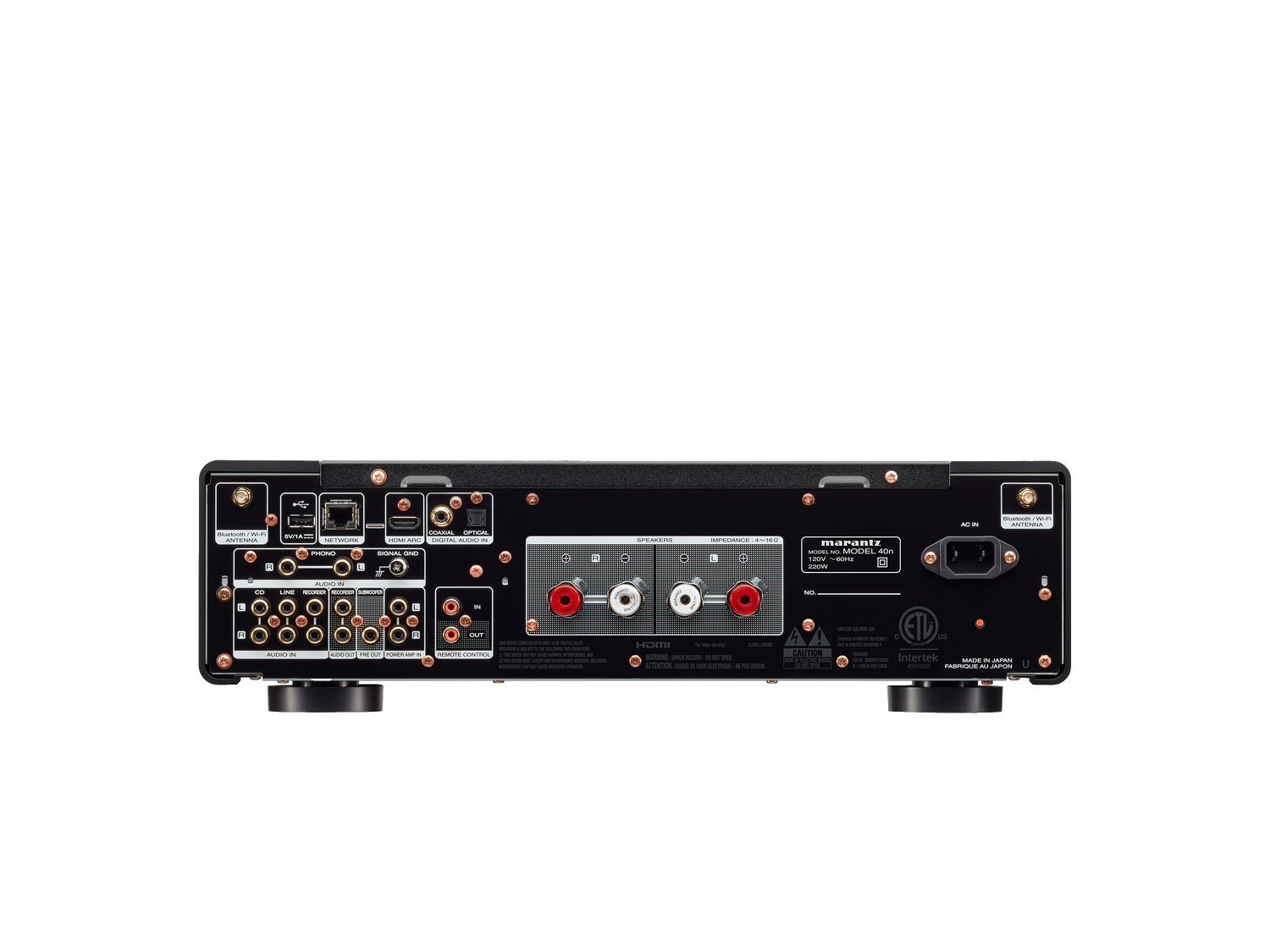

Terminal
-
Phono Input
yes (MM)
Marantz Musical Phono EQ - Ext. Pre Input (Power Amp Direct) yes
- Preout no
- Analog Input (include Phono) / REC Out (RCA) 4 (PHONO, CD, LINE,RECORDER) / 1 (RECORDER)
- Optical input 1
- Coaxial input 1
- HDMI 1 / 0 (ARC) PCM only
- USB A 1 (Rear), Mass Storage Class5V/1A
- Speaker Terminal SPKT-1+
- Remote Control Bus Terminal yes (RC-5 In / Out)
-
Subwoofer Pre-out Low Pass Filter
Selectable
40 Hz / 60 Hz / 80 Hz /100 Hz / 120 Hz
Control
- App HEOS App
-
Remote Controller
System Remote
Features (Amp and CD Player Control)
Others
- Weight in lbs 36 lbs 13 Oz
- Carton Weight (incl. product) in lbs 43 lbs 3 Oz
- Power Consumption 220W, 0.3W (Standby)
- AC Inlet yes
- Quick Start Guide Included
- Packaging Dimensions (W x H x D in inches) 21" x 10" x 20.6"
- Product Dimensions (W x H x D in inches) 17.4" x 5.1" x 17"
Cosmetic
- Panel Color SG / BK
- Front Center Panel Aluminum
- Top Cover Steel
- Edge Lighting yes (Dimmer)
- Volume Knob Aluminum
- Input Selector Aluminum
- Bass/Treble/Balance/ REC Out Sel knobs Aluminum
- Power button Aluminum
- Chassis Material SECC
- Bottom Layer Thicker double layer
