Features
- Channels 2
- Current Feedback Topology Yes
- Full balanced circuitry architecture No
- Double Mono Power Amp construction No
- Phono EQ: Standard / Marantz Musical / Marantz Musical Premium Yes / No / No
- Digital in: USB-B / optical / coaxial / USB-A No / 2 / 1 / No
- Sample Rate digital In 192 kHz / 24-bit
- USB-A: DSD / WAV / FLAC / AIFF / ALAC No
- USB-B DSD Audio Streaming (DoP): DSD2.8 / DSD5.6 No
- USB-B PCM sample rate No
- Asynchronous mode rear USB No
- Bit-perfect transmission No
- Ground isolator for DAC Mode operation No
- Tuner: FM / AM No
- Bluetooth / aptX / NFC No
- Streaming audio from PC No
- Wi-Fi / Wired LAN No
- Internet radio No
- AirPlay 2 Audio Streaming No
- Roon Tested No
- Spotify Connect* / Tidal* / Deezer* / others * No
- Amazon Prime Music* / Pandora* No
- HEOS Multiroom and Streaming No
- Voice control using Alexa No
- Voice Control - Google Assist / Apple Siri No
- Voice Control - Microphone built-in No
- DSD-Audio network streaming No
- Lossy formats: MP3 / WMA / AAC No
- Lossless formats: DSD / FLAC HD 192/24 / ALAC 96/24 / WAV 192/24 / AIFF No
- Gapless Playback No
- Remote APP: iDevice / Android No
- Analog Mode No
- HDAM version SA3, SA2
- Power Transformer: Toroidal / El Yes / No
- High Grade Audio Components Yes
- Customised Components Yes
- Symmetric PCB Layout No
- Aluminium extrusion heat sink Yes
- Copper Plated Chassis No
- Tri Tone Control (Bass / Mid / Treble) No
- Balance / Bass / Treble / Loudness Yes / Yes / Yes / No
Others
- Marantz Musical Digital Filtering Yes
- Linear Drive Power Supply Yes
- Liniear volume control Yes
- BI-AMP and Multichannel option No
- Shottky diodes Yes
- Input buffer amp (all inputs / CD only) No / No
- System block shielding: Copper / metal / none No / No / Yes
- Double Layer Bottom Plate No
- Low noise OLED display No
- Low noise LCD display No
- Source Direct Yes
- Power Amp direct No
- 5mm aluminium top plate No

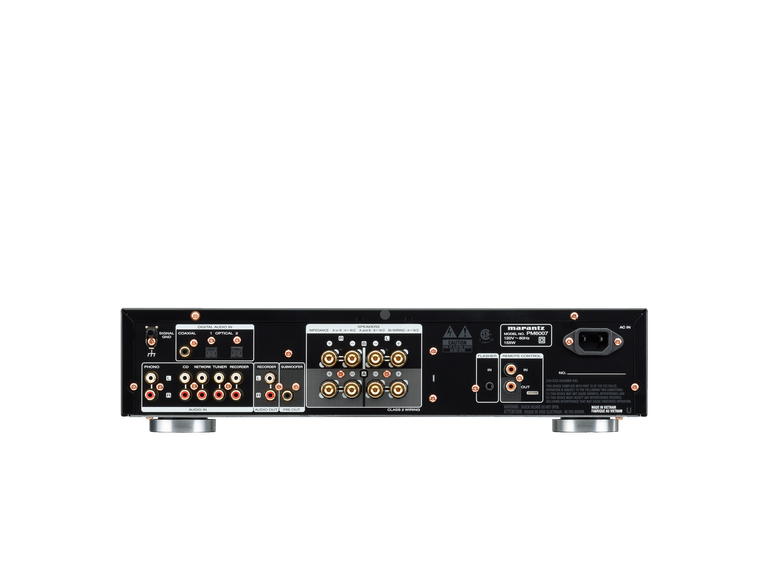

Inputs Outputs
- Audio Inputs 5
- Digital in: USB-B / optical / coaxial / USB-A No / 2 / 1 / No
- Phono Input: MM / MC Yes / No
- Audio Outputs 1
- Balanced In / Out No / No
- Pre-out / Main-in subwoofer / No
- Power Amp Direct IN No
- HDMI: inputs / outputs No
- Gold Plated Cinch Yes
- Speaker A / B Yes
- Speaker Terminals Metal (Gold) Screw
- Number of terminals 4
- D-Bus Yes
- Floating Control Bus (3.5 mm mono jack x 2) No
- Headphone Out Yes
- Headphone Gain Control (low / mid / high) No
Specifications
- Power Output (8 / 4 Ohm RMS) 45 W / 60 W
- Frequency response 10 Hz - 70 kHz
- Total Harmonic Distortion 0.08%
- Damping Factor 100
- Input Sensitivity: MM 2.2 mV / 47 kOhm
- Input Sensitivity: MC No
- Signal to Noise Ratio: MM/MC 83 dB / No
- Input Sensitivity: High level 200 mV / 20 kOhm
- Input Sensitivity: Balanced High level No
- Signal to Noise Ratio: High level 102dB(2V input)
- Input Sensitivity: Power Amp Direct IN No
- Signal to Noise Ratio: Power Amp Direct IN No
General
- Available Colors: Gold / Silver / Black / Silver-Gold No / No / Yes / Yes
- Metal Front Panel Yes
- Power Consumption in W 155
- Standby Consumption in W 0.3
- Auto Power off Yes
- Detachable Power Cable Yes
- Remote Control RC004MCD
- System Remote Function Yes
- Maximum Dimensions (W x D x H) in inches 17.3 x 14.5 x 4.1
- Weight in lbs. 16.7
- Carton Maximum Dimensions (W x D x H) in inches 20.3 x 7.4 x 18.4
- Carton Weight (inc. product) in lbs 21.3
