Multichannel Surround
- DTS HD Master / DTS:X / DTS:X Pro Yes / Yes / Yes
- DTS Neo:X / DTS Neural:X No / Yes (15ch)
- DTS Virtual:X Yes
- IMAX Enhanced Yes
- Dolby TrueHD / Dolby Atmos / Dolby Atmos Height Virtualization / Dolby Atmos Music Yes / Yes / Yes / Yes
- Dolby ProLogic Ilz / Dolby Surround No / Yes
- Auro 3D Yes
- 360 Reality Audio / MPEG H Yes / Yes
- Multichannel Stereo Yes
- Max Number of Processing (Preamp) Channels 15.4
Sound Enhancements
- Copper Plated Chassis Yes
- Power Transformer: Toroidal / EI Yes / No
- Current Feedback Topology Yes
- Hyper Dynamic Amplifier Modules (HDAM) Yes
- Pure Direct Yes
- Gold plated RCA terminals Yes
- Clock Jitter Reducer Yes
- Audyssey MultEQ XT32
- Audyssey Dynamic EQ / Dynamic Volume Yes / Yes
- Audyssey LFC Yes
- Dirac Live upgradability Yes
- Compressed Audio Enhancer: MDAX2 Yes
Network
- HEOS Multi-room and Streaming Yes
- Bluetooth Re-transmit for Bluetooth headphones Yes
- Alexa / Google Voice Assistant / Apple HomePod Yes / Yes / Yes
- Network Audio Sharing Yes
- Lossy formats: MP3 / WMA / AAC Yes / Yes / Yes
- Lossless formats: FLAC / ALAC / WAV Yes / Yes / Yes
- Lossless formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24 Yes / Yes / Yes
- DSD Audio Streaming Yes (2.8/5.6MHz)
- FLAC HD 192/24 Yes
- WAV 192/24 Yes
- ALAC 192/24 Yes
- Gapless Playback Yes (FLAC, WAV ,ALAC ,DSD)
- AirPlay Audio Streaming Yes (AirPlay2)
- Internet radio Yes (TuneIn)
- Spotify* Yes (connect)
- Pandora Yes
- SiriusXM Yes
-
Other Streaming Services *
Amazon Music HD/
Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / Soundcloud / Mood Mix - Roon Tested Yes
- Compatible with Remote APP for Smart Phones Marantz AVR Remote
- Compatible with Remote APP for Tablets Android / iOS / Amazon Kindle
- Ethernet Ports Yes
- Wi-Fi Yes
- Bluetooth Yes
HDMI
- HDMI Inputs: Back / Front 7 / No
- HDCP2.3 support Yes
- HDMI Outputs: Main / Zone 2 / 1
- HDMI to HDMI Scaling 1080P/4K to 8K
- GUI Overlay on HDMI Yes
- HDMI 2.1: 8K/60Hz AB / 4K/120Hz AB Yes / Yes
- 8K/60Hz AB / 4K/120Hz AB Pass-through In/Out 7 / 2 (up to 40Gbps)
- HDMI 2.0: 3D / 4K / CEC / ARC Yes / Yes / Yes / Yes
- Enhanced ARC Yes
- HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR Yes / Yes / Yes / Yes / Yes
- ALLM (Auto Low Latency Mode) Pass-through for gaming Yes
- Variable Refresh Rate / Quick Frame Transport Yes / Yes
- 3D Signal Pass-Through Yes
- 8K signal pass-through / scaling / GUI overlay Yes / Yes / Yes
- 4K Signal Pass-Through / Scaling / GUI Overlay Yes / Yes / Yes
- HDMI pass-though in standby mode Yes
- Picture Adjust / Noise Reduction No / No
- CEC Yes
- DSD Audio Capability Yes
- Audio Return Channel Yes
- Auto LipSync Yes
Multi-Room CI
- HEOS Multi-Room Integrated Yes
- HEOS Link Compatibility: IR/ IP Yes / Yes
- Multi-Room Zones 3
- Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog Yes (2ch) / Yes (2ch) / Yes / Yes
- Zone Audio Output: Speaker / Preout No / Yes
- Zone HDMI Output from HDMI Source Yes
- IP Control / RS232 Control / Web Control / App Control Yes / Yes / Yes / Yes
- IR Flasher In Yes
- Marantz Remote Bus Yes
- DC Trigger Output 2
- HDMI Diagnostics Yes
Others
-
Auto Speaker Setup by Microphone
Audyssey MultEQ XT32
Dirac Live (upgrade) - Front Display 2 line FLD + port hole OLED
- Graphic User Interface - GUI Modern HD GUI
- GUI Languages 3
- Setup Assistent Yes
- Smart Select Yes
- Firmware Update by Network / USB Yes / Yes
- Variable Cross Over Yes
- Optimized Bass Redirection Yes
- Bass Sync Yes
- Auto Power off Yes
- Sleep Timer Yes

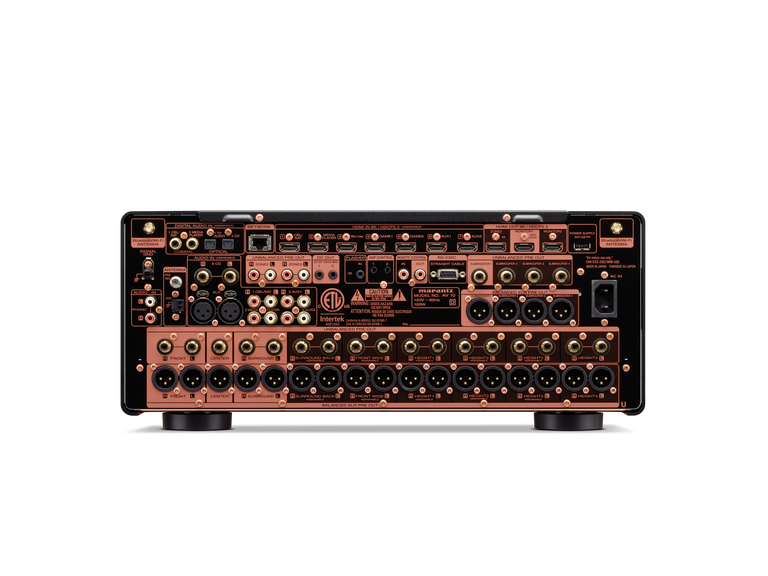

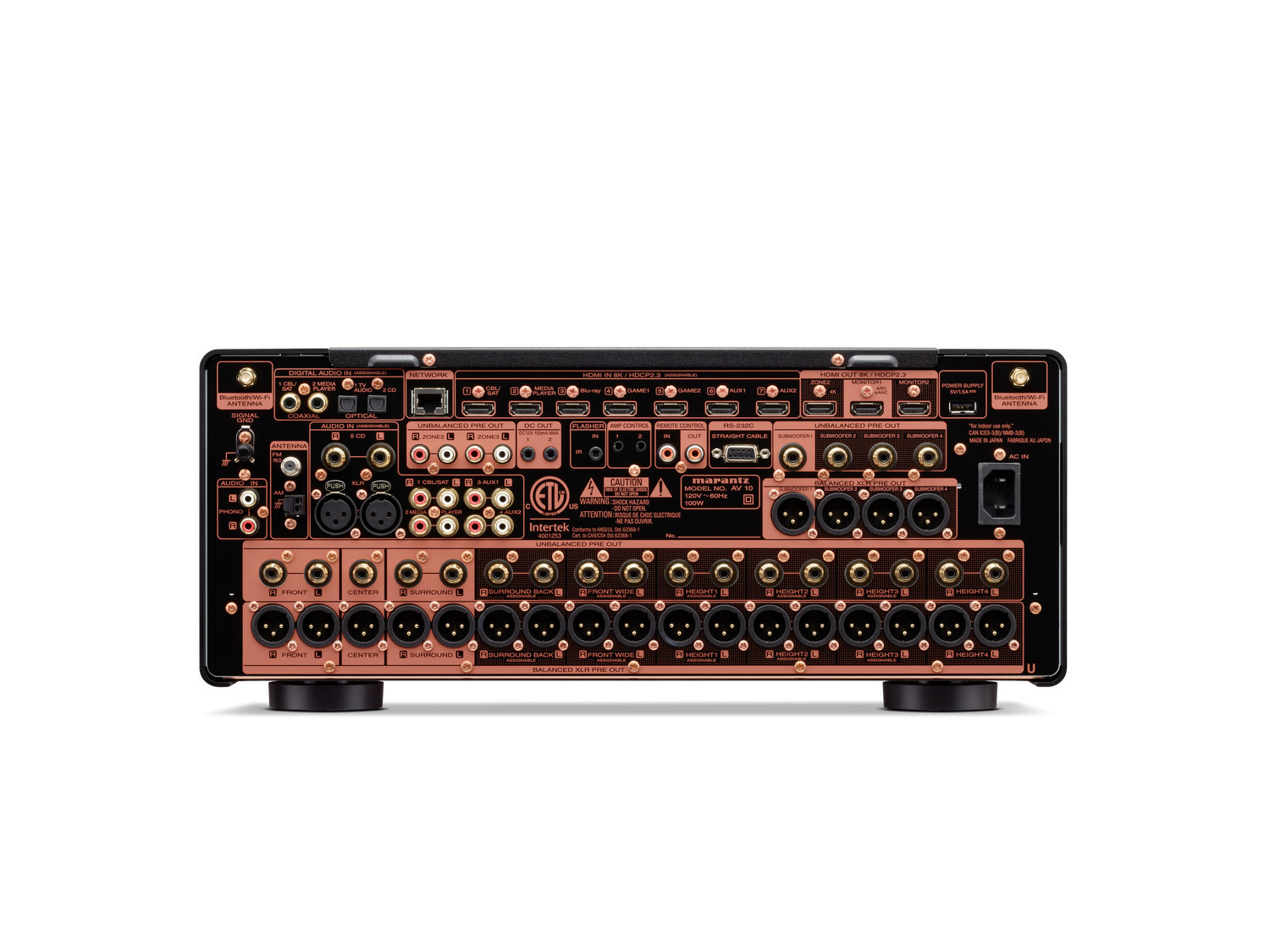

Inputs Outputs
- Composite In / Out No / No
- Component In / Out No / No
- HDMI In / Out 7 / 3
- Multi-Room Video Out: Video / HDMI No / Yes
- Analogue In / Out 5 (1x XLR) / No
- Phono (MM) In Yes
- Digital In: Optical / Coaxial 2 / 2
- Multi-Room Out: analog / digital 2 / No
- Multichannel Pre Out Yes (17.4 RCA & 17.4 XLR)
- Subwoofer Out 4 (independent)
- Speaker A / B assignable pre out
- Bi-amp drive assignable pre out
- Multi-Room Speaker Terminal pre out
- Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB No / No / No / No / Yes
- USB Audio / Made for iPod / Made for iPhone Yes / No / No
- AM/FM Tuner No
General
- Metal Front Panel Yes
- System Remote Control RC047SR
- Pre-Programmed / Learnable / LCD Display Yes / No / No
- Power Consumption in W 100
- Standby Consumption in W 0.2
- CEC Standby Consumption in W 0.5
- Network Standby Consumption in W Less than 2.0
-
Maximum Dimensions
Antenna:Horizontal:(W x D x H) in inches
Antenna:Vertical :(W x D x H) in inches
W/o Antenna:(W x D x H) in inches 17.4 x 19.8 x 7.4
( 17.4 x 19.8 x 9.9 )
【 17.4 x 19.0 x 7.4 】 - Weight in lbs. 37.0
- What's in the box Main unit, remote control, batteries, AM/FM antennas, wire labels, quick start guide, Audyssey microphone, card board microphone stand, 2 External Detachable Antenna, AC cord
